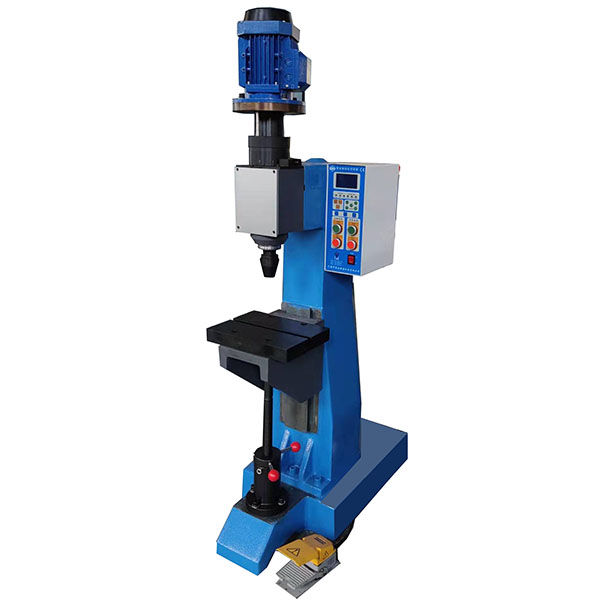

Hydraulic Spin riveting machine

SP-H-12

SP-H-12

Vertical Hydraulic Bell Rotating Machine

The maximum bell pressure ：15KN

Riveting stroke： up to 50mm

oil pressure：Maximum 7Mpa

fine-tuning accuracy：0.1mm

Equipment N.W:400kg

Riveting capacity (rivet diameter):Ø3-Ø12mm( mild steel)

rotating motor:3-phase 380V1400r/min50Hz0.75kw

closed height adjustment:200mm

working desk size: 300*230mm

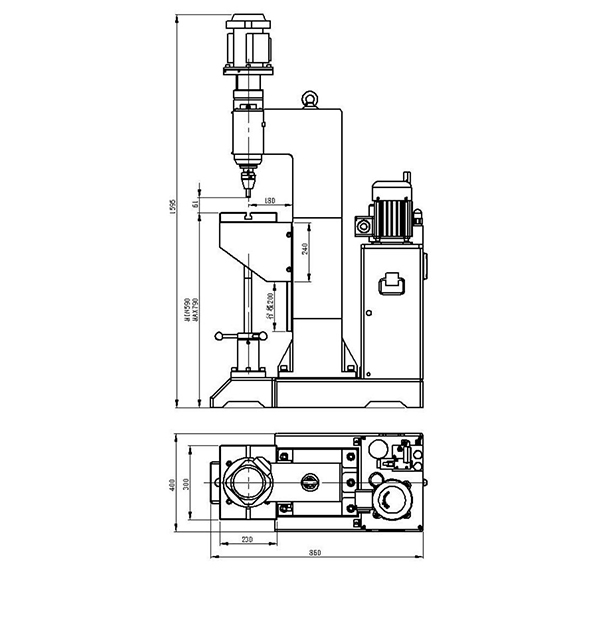

Overall size:400*860*1600mm

How does the spinning riveting machine work?(click and watch the video)

Spin riveting machine is precision engineered that they will riveting with unfailing speed, accuracy & consistent repeatability. Quiet electric motors drive the silent orbital movement of the tool holder.  Pressure for head forming is generated by either pneumatic or hydraulic power,both fully adjustable. Ajustment of riveting force, time, stroke & speed allows the machine to perform on a wide variety of applications.
