Orbital riveting machine

SP-P-08

SP-P-8

Pneumatic Desktop Riveting Machine

Maximum Riveting Pressure:9KN

Riveting stroke:up to 50mm

barometric pressure:Maximum 0.6Mpa

fine-tuning accuracy:0.1mm

Equipment net weight：260kg

Riveting capacity (rivet diameter):Ø3-Ø8mm( mild steel)

rotating motor:3 phase 380V 1400r/min 50Hz0.75kw

Closed height adjustment:120mm

working desk size:300*200mm

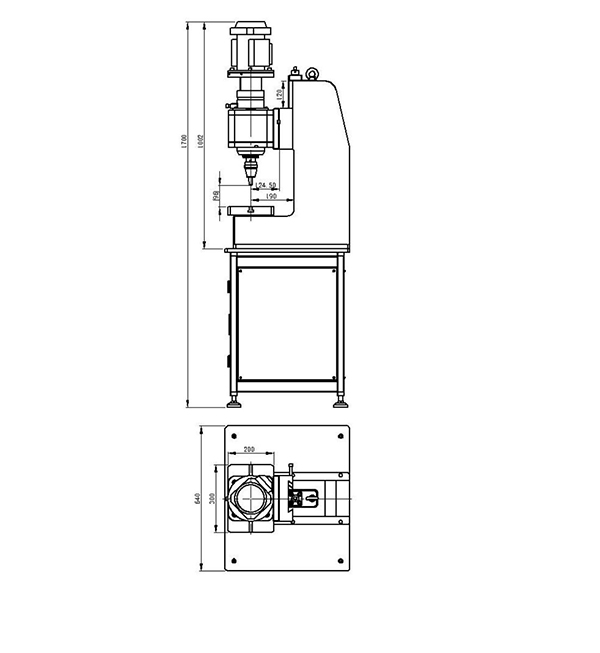

Overall size:640*550*1700mm

How does the spinning riveting machine work?(click and watch the video)

Spin riveting machine is precision engineered that they will riveting with unfailing speed, accuracy & consistent repeatability. Quiet electric motors drive the silent orbital movement of the tool holder.  Pressure for head forming is generated by either pneumatic or hydraulic power,both fully adjustable. Ajustment of riveting force, time, stroke & speed allows the machine to perform on a wide variety of applications.
