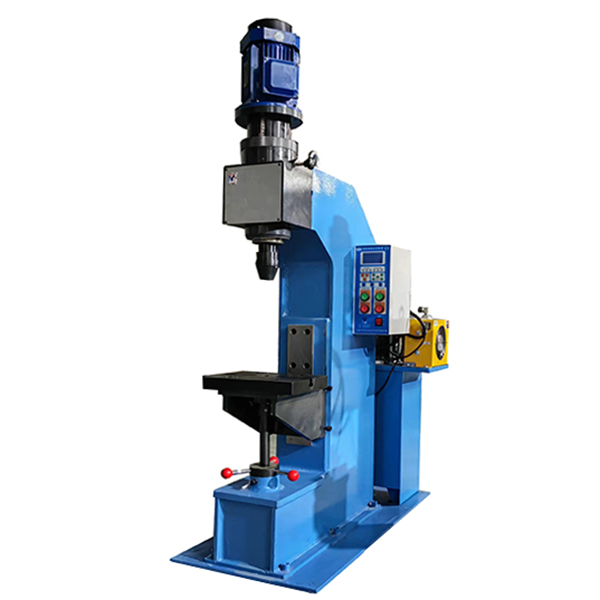

Hydraulic Spin riveting machine

SP-H-15

SP-H-15

Hydraulic Vertical Riveting Machine

Maximum spin riveting pressure ：26KN

Riveting stroke： up to 50mm

Oil pressure ：up to 7Mpa

Fine-tuning accuracy 0.1mm

Equipment net weight： 600kg

Riveting capacity (rivet diameter) ：Ø8-Ø15mm (mild steel)

rotating motor： 3-phase 380V 1420r/min 50Hz1.5kw

Closed height adjustment： 225mm

Table size： 300*230 mm

Overall size：1010*400*1700mm

How does the spinning riveting machine work?(click and watch the video)

Spin riveting machine is precision engineered that they will riveting with unfailing speed, accuracy & consistent repeatability. Quiet electric motors drive the silent orbital movement of the tool holder.  Pressure for head forming is generated by either pneumatic or hydraulic power,both fully adjustable. Ajustment of riveting force, time, stroke & speed allows the machine to perform on a wide variety of applications.
