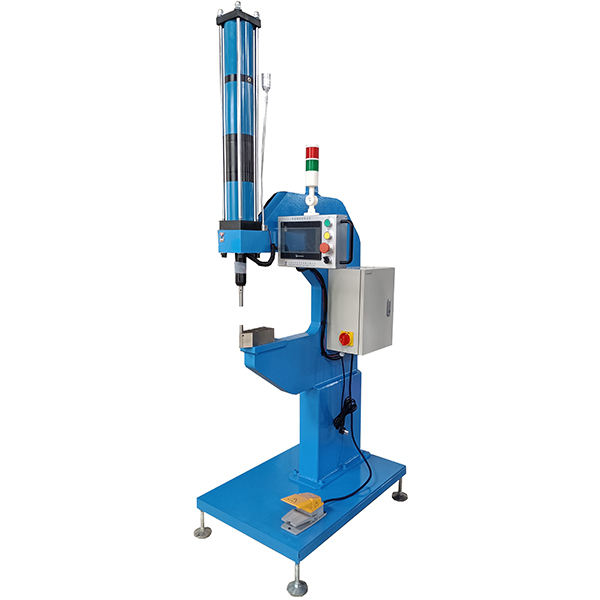

Pneumatic Fastener Insertion Machine

The positive stop cylinder of fastener insertion machine is designed to prevents the plate from being deformed or crushed when the fastener is pressed.The product thickness can be accurate to +0.05mm.Proprietary stress test adjustment button, allowing you to find the right force within 10 seconds. Ram force repeat accuracy

How does the fasteners insertion machine work?(click and watch the video)

Fastener elements such as nuts, studs, rivets or screws can be pressed into almost any material.

TECHNICAL FEATURES

SAFE AND RELIABLE — Security system of Fastener Insertion Machine make the operator to full protection on the conductive non-conductive work mode, which greatly enhaced the confidence and plug efficiency for the operator. No security risks.

ENERGY SAVING AND ENVIRONMENT PROTECTION — Hydraulic drive can reduce Energy consumption by about 40% relatively pneumatic and hydraulic drive, greatly reducing the energy costs of equipment, the machine only press instantly applied in the full-load, standby power consumption is only 15%.

SIMPLE OPERATION — Proprietary stress test adjustment button, allowing you to find the right riveting pressure within 10 seconds the novice can easily operate.

Designed for the soft material, such as: PC board, plastic, glass and aluminim, which make fasteners plates woll not be deformed or crusche.

CUSTOMIZED DESIGN AND DEVELOPMENT — Professional technical team, to produce special pieces suitactual production customized

Product Feature

. High stiffness,structure,high stability,less deformation,less vibration,high accuracy

. Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion  process by single operator

. Quick press force setting and repeatability ± 1%

. Maximum welding speed 35/min

. 100% safety system

. Ram force range MAX 54 KN

. Energy saving re-design reliability and energy efficiency of a full hydraulic system
